Description

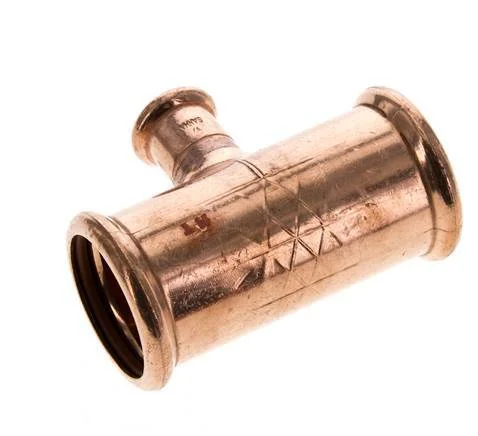

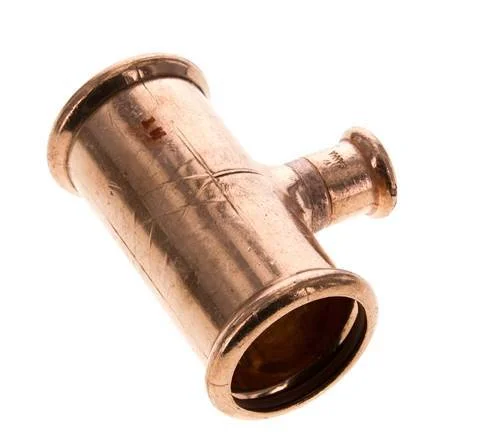

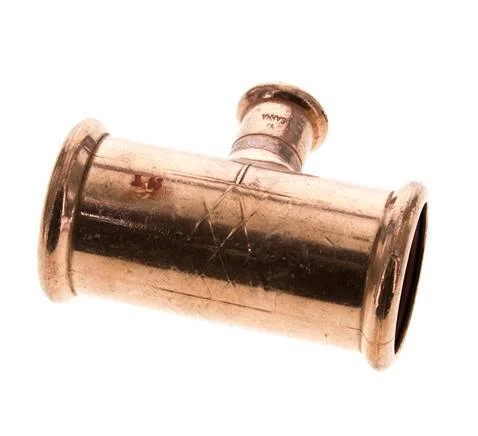

This is a tee press fitting made from copper alloy. The fitting has three female press ports. Connection 1 is designed for a tube with an outer diameter of 15 mm, connection 2 and 3 are designed for a tube with an outer diameter of 35 mm. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F).

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
