Description

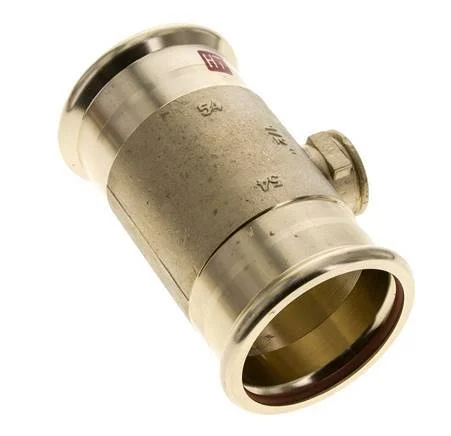

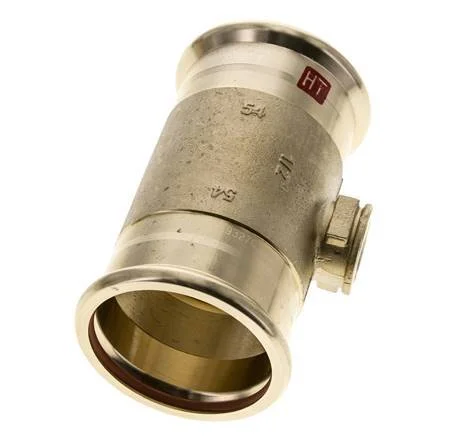

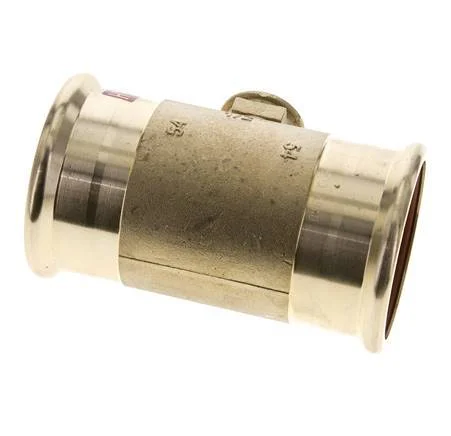

This is a tee press fitting made from copper alloy. The fitting has two female press port and a female threaded port. Connection 1 and 2 are designed for a tube with an outer diameter of 54 mm and connection 3 has Rp 1/2 inch female threads. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F).

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
